What Are Schedule 80 Steel Pipes Used For

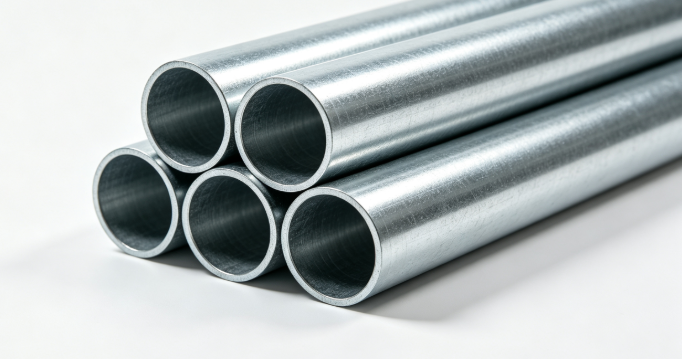

What Is Schedule 80 Steel Pipe?
Schedule 80 steel pipe is a steel pipe with a relatively thick wall for its nominal pipe size. "Schedule 80" is not a steel grade or a specific material. It is a pipe schedule used to identify wall thickness.
Compared with Schedule 40, Schedule 80 has a thicker wall for the same nominal pipe size. This makes it suitable for piping systems where greater wall thickness, mechanical strength, or pressure resistance is required.
Schedule 80 steel pipes can be produced from different steel materials. Among them, schedule 80 carbon steel pipe is widely considered for industrial applications because it offers a practical balance of strength and cost.
How Thick Is Schedule 80 Steel Pipe?
One important point is that Schedule 80 does not mean one fixed wall thickness. The sch 80 steel pipe wall thickness varies according to the nominal pipe size.
For example, NPS 2 Schedule 80 pipe has a wall thickness of about 5.54 mm, while NPS 4 Schedule 80 pipe has a wall thickness of about 8.56 mm. Therefore, buyers need to specify both the nominal pipe size and schedule when ordering schedule 80 steel pipe.
The thicker wall can provide greater resistance to internal pressure and mechanical loads. However, the actual allowable working pressure depends on more than pipe schedule. Material grade, operating temperature, design requirements, and applicable standards also need to be considered.
What Are the Main Features of Schedule 80 Steel Pipe?
The main feature of schedule 80 steel pipe is its increased wall thickness compared with lighter schedules.
A thicker wall can provide greater mechanical strength and resistance to demanding service conditions. This is one reason schedule 80 carbon steel pipe is used in industrial piping systems where durability and reliable performance are important.
Schedule 80 pipe is also heavier than Schedule 40 pipe of the same nominal size. The additional material can increase the pipe's weight and cost, so Schedule 80 is generally selected when its thicker wall is justified by the project requirements.
Where Are Schedule 80 Steel Pipes Used?
Schedule 80 steel pipe is commonly considered for industrial applications that require relatively thick-wall piping.
Oil and Gas
In oil and gas facilities, schedule 80 carbon steel pipe can be used for industrial fluid transportation and process piping. The appropriate pipe specification depends on pressure, temperature, transported medium, material grade, and project standards.
Chemical Processing
Chemical plants may require piping that can withstand pressure, temperature, and demanding operating conditions. Schedule 80 steel pipe can be selected when a thicker wall is required. The material should be matched to the chemical medium and corrosion conditions.
Steam and Industrial Process Systems
Steam and process piping can operate under elevated temperature and pressure. Schedule 80 steel pipe may be used where the project requires additional wall thickness and mechanical strength. The final selection should be based on the complete design conditions rather than schedule alone.
Fire Protection
Some industrial fire protection systems use heavier-wall steel pipe where required by the project specification. Schedule 80 may be considered for applications requiring robust piping, subject to the applicable fire protection standard and system design.
Industrial Water and Fluid Transportation
Schedule 80 steel pipes can also be used for industrial water and other fluid transportation systems. Whether Schedule 80 is necessary depends on the operating pressure, installation conditions, and engineering requirements.
How Does Schedule 40 vs 80 Steel Pipe?
The difference in a schedule 40 vs 80 steel pipe comparison mainly concerns wall thickness.
For the same nominal pipe size, Schedule 80 generally has a thicker wall than Schedule 40. Because the outside diameter is normally the same for the same nominal size, the thicker wall results in a smaller internal diameter and greater weight.
Schedule 80 can therefore provide greater resistance to internal pressure and mechanical loads under comparable design conditions. Schedule 40 may be sufficient when the system does not require the additional wall thickness.
