Youfa is a leading carbon steel pipe fittings manufacturer in China. Youfa's carbon steel fittings are an excellent choice for durability, cost-efficiency, and versatility
Quantity
What Is Carbon Steel Fitting？
Carbon steel fittings are components used in piping systems to connect, redirect, or modify the flow of fluids (like water, gas, or oil) in industrial and residential applications. They are made from carbon steel, a type of steel where the main alloying element is carbon. This material is known for its strength, durability, and resistance to wear and tear.
Carbon steel fittings come in various types, each designed for specific functions. Common types include:Elbow,Tee,Reducer,Cap etc.
Carbon steel fittings are widely used in industries like oil and gas, petrochemicals, power generation, and water treatment due to their robustness and ability to withstand high pressure and temperature.
| Name | Youfa carbon steel pipe fitting for construction |
| Size | From 1/2'' to 72'' |
| Brand | Youfa carbon steel pipe fittings manufacturer |
| Angles | 30° 45° 60° 90° 180° |
| Thickness | SCH20, SCH30, SCH40, STD, SCH80, SCH100. SCH120, SCH160. XXS |
| Material | Carbon steel (seam & seamless) / mild steel pipe fittings |
| Standard | ASTM A234 ASME B16.9 ASME 16.28 DIN 2605 DIN 2615 DIN 2616 DIN 2617 JIS B2311 JIS B2312 JIS B2313 BS GB |
| Certification | ISO9001:2008 , CE, BV, SUV |
| Surface | black painting ,painting anti-rust oil |
| Usage | Petroleum,chemical ,electric power , metallurgy , shipbuilding, construction etc. |
| Package | Seaworthy package . Wooden or plywood case or pallet , or as customers' request |
| Delivery time | 7-30 days after received deposit |
| Sample | available |
| Remark | Special design is available as customers' requirement |
Carbon Steel Pipe Fitting Product Show
Carbon Steel Fitting Specification

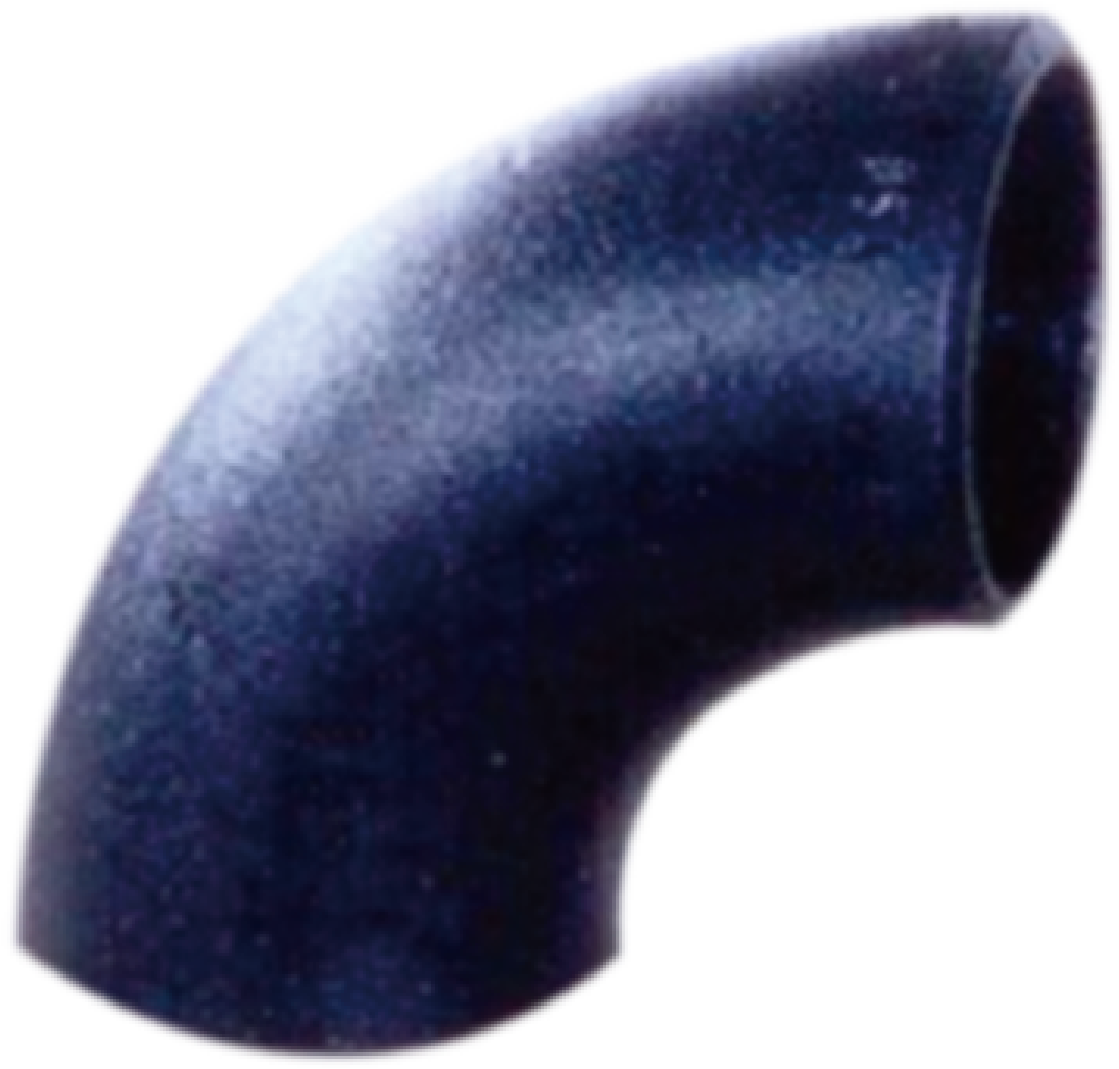

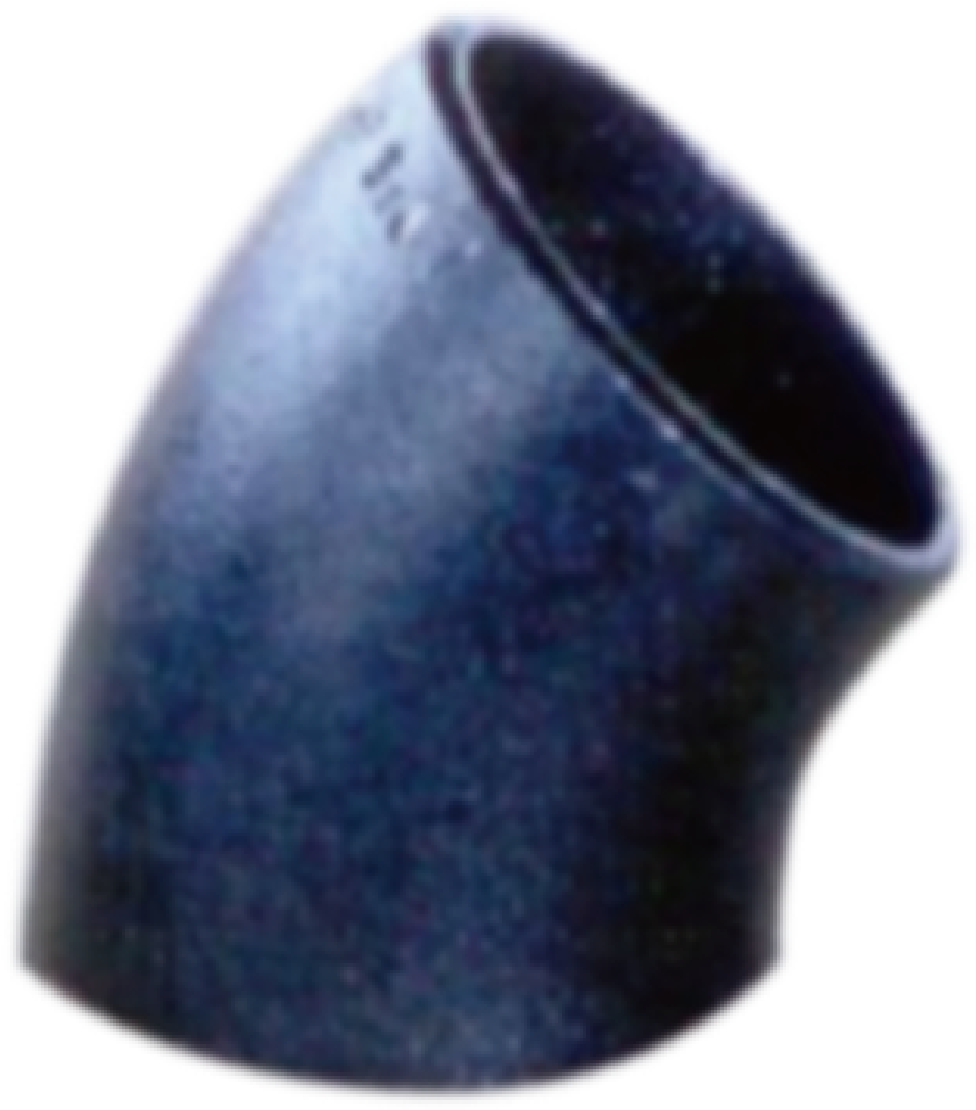

45° , 90° AND 180° CARBON STEEL ELBOW
STANDARD: ASME/ANSI B16.9
GRADE:WPB
| Outside Diameter | Wall Thickness(mm) | Theoretical Weight | |||
| 45° | 90° | 180° | |||
| INCH | MM | SCH40 | KG | KG | KG |
| 1/2 | 21.3 | 2.77 | 0.04 | 0.08 | 0.16 |
| 3/4 | 26.7 | 2.87 | 0.05 | 0.1 | 0.21 |
| 1 | 33.4 | 3.38 | 0.08 | 0.16 | 0.3 |
| 1.25 | 42.2 | 3.56 | 0.13 | 0.25 | 0.5 |
| 1.5 | 48.3 | 3.68 | 0.18 | 0.38 | 0.72 |
| 2 | 60.3 | 3.91 | 0.38 | 0.65 | 1.3 |
| 2.5 | 73 | 5.16 | 0.65 | 1.29 | 2.58 |
| 3 | 88.9 | 5.49 | 1.02 | 2.03 | 4.06 |
| 3.5 | 101.6 | 5.74 | 1.22 | 2.45 | 4.87 |
| 4 | 114.3 | 6.02 | 1.93 | 3.85 | 7.1 |
| 5 | 141.3 | 6.55 | 3.26 | 6.51 | 13.6 |
| 6 | 168.3 | 7.11 | 6.06 | 10.1 | 20.2 |
| 8 | 219.1 | 8.18 | 7.96 | 18.9 | 21.8 |
| 10 | 273.1 | 9.27 | 12.5 | 25 | 50 |
| 12 | 323.9 | 9.53 | 38.6 | 66.1 | 108 |
| 14 | 355.6 | 9.53 | 34.1 | 68.1 | 136 |
| 16 | 406.4 | 9.53 | 56.5 | 113 | 226 |
| 18 | 457.2 | 9.53 | 44.7 | 39.3 | 179 |
| 20 | 508 | 9.53 | 70 | 140 | 230 |
| 22 | 558.8 | 9.53 | 77 | 170 | 340 |
| 24 | 609.6 | 9.53 | 101 | 202 | 404 |
| 26 | 660.4 | 9.53 | 119 | 238 | 476 |
STRAIGHT AND REDUCER TEE
STANDARD：ASME/ANSI B16.9
GRADE:WPB
| Outside Diameter | Outside Diameter | ||
| INCH | MM | INCH | MM |
| 3/4×3/4 | 26.7×26.7 | 6×6 | 168.3×168.3 |
| 3/4×1/2 | 26.7×21.3 | 6×5 | 168.3×141.3 |
| 1×1 | 33.4×33.4 | 8×8 | 219.1×219.1 |
| 1×3/4 | 33.4×26.7 | 8×6 | 219.1×168.3 |
| 1 1/4×1 1/4 | 42.2×42.2 | 10×8 | 273×219.1 |
| 1 1/4×1 | 42.2×33.4 | 10×10 | 273.1×273.1 |
| 1 1/2×1 1/2 | 48.3×48.3 | 12×12 | 610×508 |
| 1 1/2×1 1/4 | 48.3×42.2 | 12×10 | 323.8×323.8 |
| 2×2 | 60.3×60.3 | 14×14 | 323.8×273.1 |
| 2×1 1/2 | 60.3×48.3 | 14×12 | 355.6×355.6 |
| 3×3 | 88.9×88.9 | 18×18 | 355.6×323.8 |
| 4×4 | 114.3×114.3 | 18×16 | 457×457 |
| 3×2 1/2 | 88.9×73 | 20×20 | 508×508 |
| 4×3 | 114.3×88.9 | 24×18 | 457×406.4 |
| 5×5 | 141.3×141.3 | 24×24 | 508×457 |
| 5×4 | 141.3×114.3 | 24×20 | 610×610 |
CONCENTRIC AND ECCENTRIC REDUCER
STANDARD ASME/ANSI B16.9
GRADE:WPB
| Outside Diameter | Outside Diameter | ||
| INCH | MM | INCH | MM |
| 3/4×1/2 | 26.7×21.3 | 5×3 | 141.3×88.9 |
| 1×3/4 | 33.4×26.7 | 6×5 | 168.3×141.3 |
| 1×1/2 | 33.4×21.3 | 6×4 | 168.3×114.3 |
| 1 1/4×1 | 42.2×33.4 | 8×6 | 219.1×168.3 |
| 1 1/4×3/4 | 42.2×26.7 | 8×4 | 219.1×114.3 |
| 1 1/2×1 1/4 | 48.3×42.2 | 10×8 | 273.1×219.1 |
| 1 1/2×1 | 48.3×33.4 | 10×6 | 273.1×168.3 |
| 2×1 1/2 | 60.3×48.3 | 12×10 | 323.9×273.1 |
| 2×1 | 60.3×33.4 | 12×8 | 323.9×219.1 |
| 2 1/2×2 | 73×60.3 | 14×12 | 355.6×323.8 |
| 2 1/2×1 1/2 | 73×48.3 | 14×10 | 355.6×273.1 |
| 3×2 1/2 | 88.9×73 | 18×16 | 457×406.4 |
| 3×2 | 88.9×60.3 | 18×14 | 457×355.6 |
| 4×3 | 114.3×88.9 | 20×18 | 508×457 |
| 4×2 1/2 | 114.3×73 | 24×20 | 610×508 |
| 5×4 | 141.3×114.3 | 24×18 | 610×457 |
Carbon Steel Fitting Warehouse
Carbon Steel Fitting FAQ
1.Q: What are the advantages of using Carbon Steel Fittings?
A: High Strength: Carbon steel is known for its strength and durability, making it suitable for high-pressure applications.
Versatility: They can be used in various industries, including oil and gas, petrochemical, power generation, and construction.
Cost-Effective: Carbon steel is relatively inexpensive compared to other materials like stainless steel or alloy steel.
Corrosion Resistance: While not as resistant as stainless steel, carbon steel can be treated or coated to improve its resistance to corrosion.
2.Q: Can Carbon Steel Fittings be used in corrosive environments?
A: Yes, carbon steel fittings can be used in corrosive environments, but they may require additional coatings or treatments, such as galvanization or painting, to enhance their corrosion resistance. In highly corrosive environments, stainless steel or other alloy fittings might be more suitable.
3.Q: What are the common applications of Carbon Steel Fittings?
A: Carbon steel fittings are widely used in:
Oil and Gas Industry: For pipelines and processing plants.
Petrochemical Plants: For transporting chemicals and gases.
Power Generation: In high-pressure and high-temperature systems.
Construction: In building infrastructure and utilities.
4.Q: Are there any limitations to using Carbon Steel Fittings?
A: Some limitations include:
Corrosion: Carbon steel is prone to rust and corrosion if not properly protected or maintained.
Weight: Carbon steel fittings can be heavier than those made from other materials, which might be a consideration in certain applications.
Temperature Sensitivity: At very high temperatures, carbon steel may lose its strength, making it less suitable for certain extreme environments.
